SINGLE SHAFT PIPE SHREDDER
APPLICATIONS：
- Plastic - sanitation trash can, turnover box
- Pipe material - large thick wall pipe, bellows
- Bales - whole rolls of carpet, artificial turf
- Industrial paper tube, etc
EQUIPMENT INTRODUCTION
model： WTP series

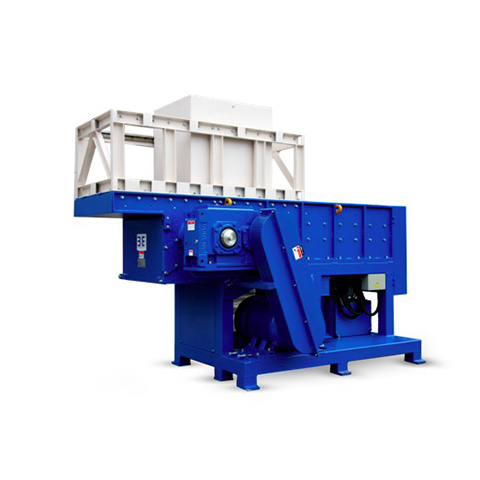

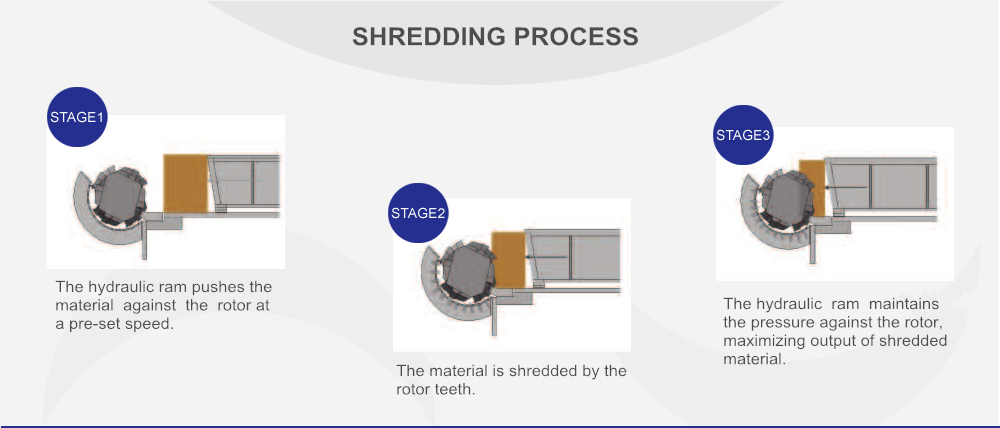

The Single Shaft Pipe Shredder is specifically designed for processing long and thick walled plastic pipe. The shredder can be adjusted to suit various pipe diameters.
VIDEO

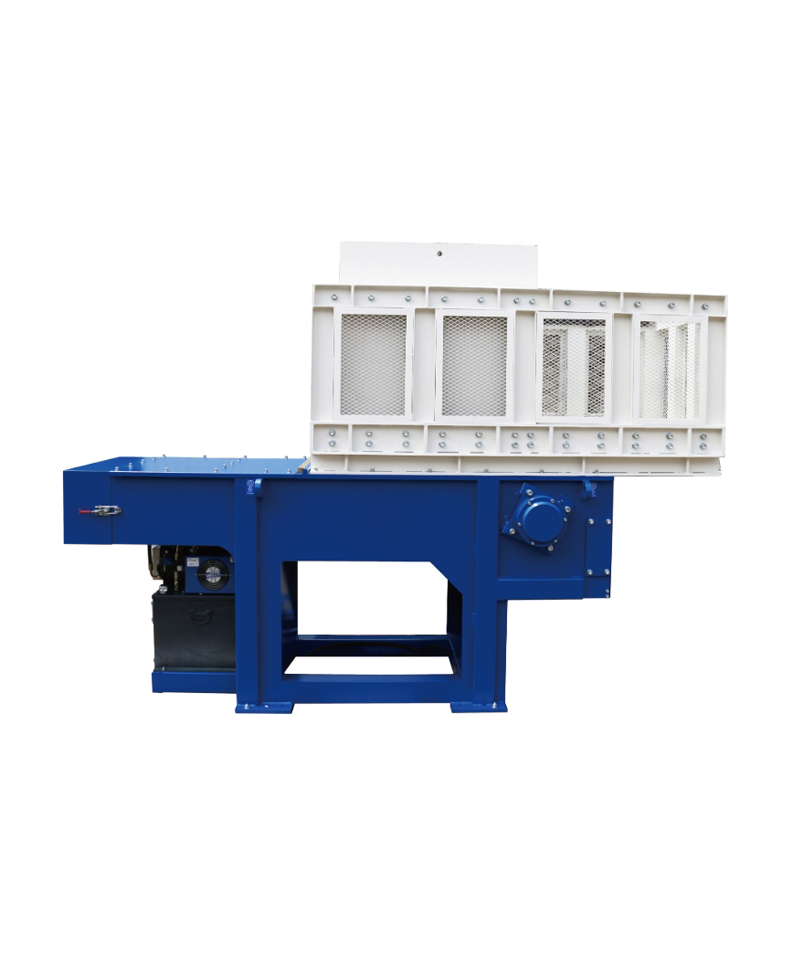

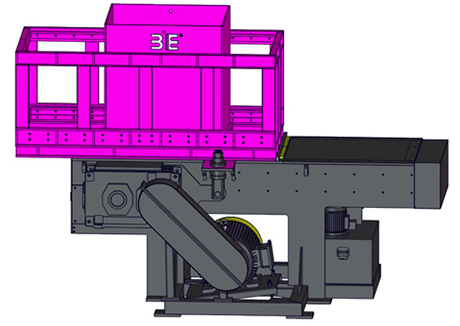

PIPE Single shaft shredder
Various rotor configurations availabel
ROTOR
Different screen size
SCREEN
Hardened teeth on the reducer
GEAR BOX
Reduce vibration during shredder
SHOCK ABSORBER
Hydraulic control
RAM
Fitted with wind cooled
HYDRAULIC STATION
Protect the bearing cover
BEARING SEAT
TECHNICAL FEATURES
- The whole system meets the CE safety standard
- Independent control electric box, Siemens PLC control
- Large material auxiliary feeding device to reduce the impact of feeding on the equipment
- According to the requirements of different materials, different knives, rollers and screens are selected
- Install the shock absorber so that it tears smoothly
- Hard tooth surface reducer is adopted, which is safe and stable, equipped with water cooling function
- Bearing outside, effectively avoid dust entering
PARAMETERS
MODEL +
CASES
Waste Pipe shredding & Crushing Line
Palestine. Pipe recycling line
Simple crushing production line
SINGLE SHAFT PIPE SHREDDER
|
Item Model |
WTP2260 |
WTP3080 |
WTP4080 |
|---|---|---|---|
|
Dimension L/W/H(mm) |
2148×1379×1774 |
2629×1713×2092 |
3240×1779×2116 |
|
Cutting Chamber C/D(mm) |
452×542 |
860×740 |
860×740 |
|
Height of discharge port H(mm) |
546 |
500 |
500 |
|
Cylinder Stroke (mm) |
500 |
750 |
900 |
|
Rotor Diameter (mm) |
φ224.7 |
φ300 |
φ390.3 |
|
Main Shaft Speed (r/min) |
83 |
83 |
74 |
|
Screen Mesh (mm) |
φ25 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
32 |
46 |
46 |
|
Stator-knives (pcs) |
2+2 |
2 |
2 |
|
Main Motor Power (kw) |
18.5 |
30 | 37 |
|
Hydraulic Motor Power (kw) |
2.2 | 2.2 | 2.2 |
|
Main Motor Power (kw) |
Approx 1700 |
Approx 2700 |
Approx 4800 |
|
Item Model |
WTP40100 |
WTP40120 |
WTP40150 |
|---|---|---|---|
|
Dimension L/W/H(mm) |
3368×1972×2116 |
4100×2566×2218 |
4768×2886×2575 |
|
Cutting Chamber C/D(mm) |
980×940 |
1140×1100 |
1300×1440 |
|
Height of discharge port H(mm) |
500 |
600 |
810 |
|
Cylinder Stroke (mm) |
900 |
1100 |
1300 |
|
Rotor Diameter (mm) |
φ390.3 |
φ390.3 |
φ390.3 |
|
Main Shaft Speed (r/min) |
74 |
74 |
74 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
58 |
70 |
94 |
|
Stator-knives (pcs) |
2 |
2 |
3 |
|
Main Motor Power (kw) |
45 |
55 | 75 |
|
Hydraulic Motor Power (kw) |
2.2 | 5.5 | 5.5 |
|
Main Motor Power (kw) |
Approx 4800 |
Approx 6000 |
Approx 7100 |
