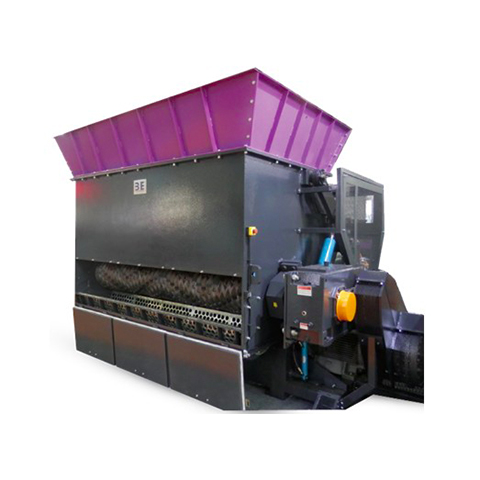

SWINGING ARM SINGLE SHAFT SHREDDER

APPLICATIONS:

  • Plastics - general purpose plastics for injection molding, extrusion, film blowing, etc
  • Waste appliances - TV sets, washing machines, refrigerators, etc
  • Wire and cable
  • Aluminum - cans, aluminum chips
  • Chemical fiber - carpet, glass fiber products
  • Paper, domestic waste, industrial waste
  • Safe destruction - counterfeit (counterfeit)

EQUIPMENT INTRODUCTION

model: WTB series

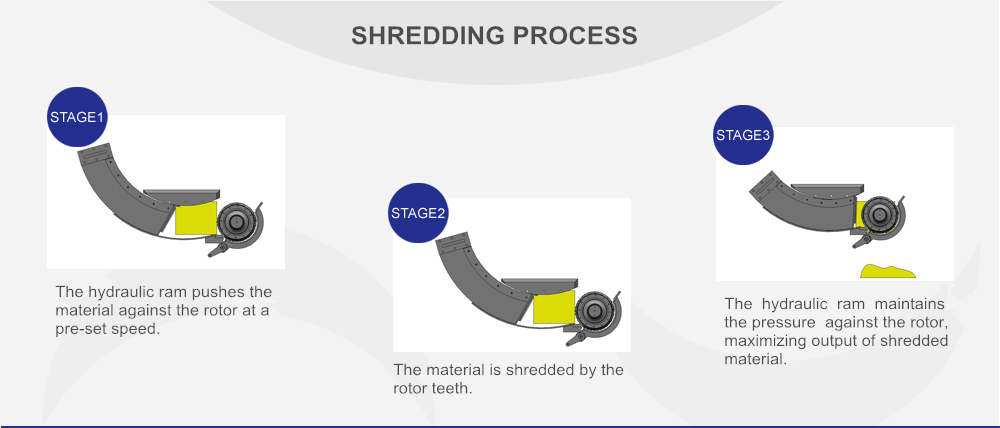

The WTFB range is a swinging arm shredder which uses gravity to guide material onto the shaft.Suitable for processing a wide range of materials including: Refrigerator, Pipe, Tires, Washing machine, Copper, Aluminum, Pllets.

VIDEO

3E Single Shaft Shredder WTB48200--Shredding Barrels

Various rotor configurations availabel

ROTOR

Fitted with wind cooled

HYDRAULIC STATION

Protect the bearing cover

BEARING SEAT

Different screen size

SCREEN

Hydraulic control

RAM

Reduce vibration during shredder

SHOCK ABSORBER

European CE certification

CE CERTFIED

TECHNICAL FEATURES

  • It has efficient tearing ability, provides high shear force and ensures high crushing yield
  • High speed swing arm pushing system to maximize output
  • Install the shock absorber so that it tears smoothly
  • Hard tooth surface reducer is adopted, which is safe and stable, equipped with water cooling function
  • Independent control electric box, Siemens PLC control
  • The whole system meets the CE safety standard

PARAMETERS

MODEL   +

CASES

WTB48200

WTB48150

WTB48200

DATA DOWNLOAD

DOWNLOAD

SWINGING ARM SINGLE SHAFT SHREDDER


Item       Model

WTB48150

WTB48200

WTB48250

Dimension L/W/H (mm)

2740×3750×2770

2740×4265×2770

2740×4930×2770

Cutting Chamber C/D(mm)

1500×1618

2000×1618

2500×1618

Height of discharge port E (mm)

600

600

480

Cylinder Stroke (mm)

550

550

550

Rotor Diameter (mm)

φ464.8

φ464.8

φ464.8

Main Shaft Speed (r/min)

83

83

83

Screen Mesh (mm)

φ40

φ40

φ40

Rotor-knives (pcs)

90+4

144+4

144+4

Stator-knives (pcs)

3

4

5

Main Motor Power (kw)

90

75+75

90+90

Hydraulic Motor Power (kw)

7.5

7.5

7.5

Weight (kg)

9500

12500

15000
