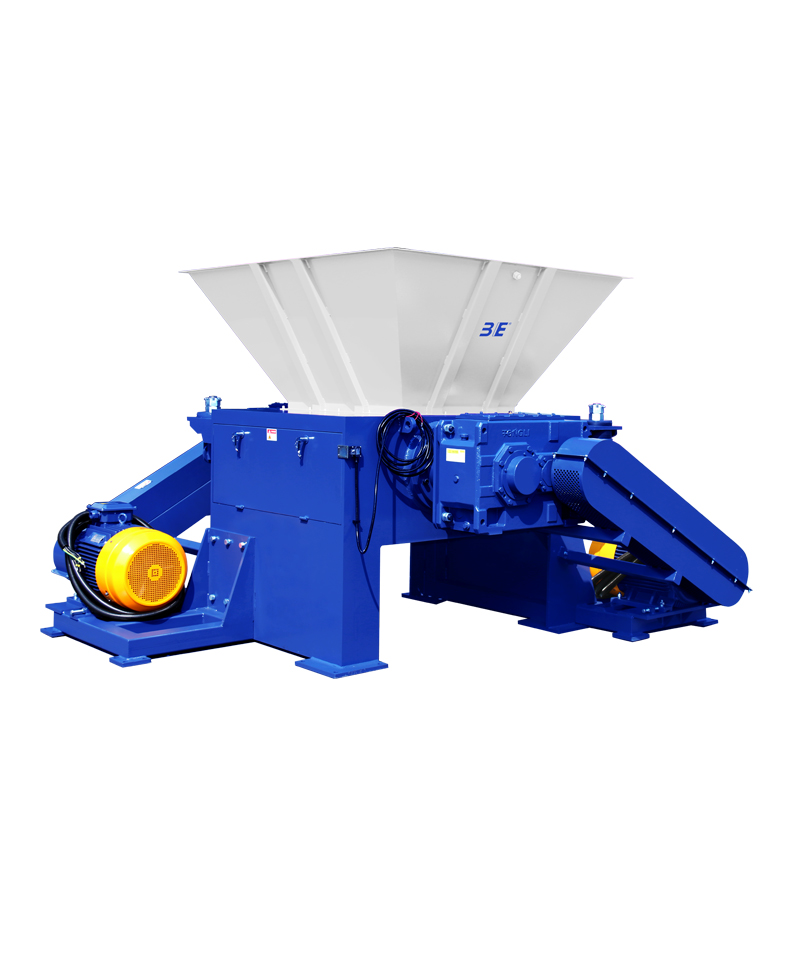

FILM SHREDDER

APPLICATIONS:

  • film
  • Ton bag, woven bag
  • Paper Products
  • Soft plastic

EQUIPMENT INTRODUCTION

model: SWTF series

SWTF series film shredders adopt double film shafts design that rotate a medium speed, low noise and high efficient without pusher. Adopt SIENMENS LOGO microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming. It is especially suitable for recycling the medium hardness and soft material, for example film, woven bag, jumbo bag, paper and ect. Aiming at different material, it could use different shaft.

VIDEO

Big Bags/Woven Bags Shredding

Rotors with different materials

ROTOR

Hardened teeth on the reducer

GEAR BOX

Z-type screen

SCREEN

Reduce vibration during shredder

SHOCK ABSORBER

Safety devices in line with CE standard

PLC CONTROL SYSTEM

Avoid dust

BEARING SEAT

TECHNICAL FEATURES

  • Siemens PLC automatic system is adopted
  • Automatic control, start, stop, reverse function
  • Double roller design, medium speed, high efficiency, low noise
  • Movable knife angle can be changed, multiple use
  • Adopt hard tooth surface reducer, safe and stable
  • Meet CE standard

PARAMETERS

MODEL   +

CASES

SWTF 40150

SWTF 40150

SWTF 40100

DATA DOWNLOAD

DOWNLOAD

Model
             Item
SWTF 2260 SWTF 3080 WTF 40100 SWTF 40120

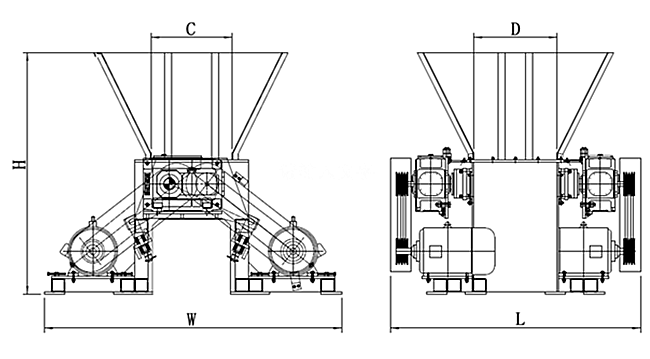

外形尺寸 L/W/H(mm) 2540 X 2240 X 1765 2540 X 2240 X 1765 2895 X 2720 X 2025 3122 X 2720 X 2025
粉碎室尺寸 C/D(mm) 1245 X 1405 1245 X 1405 1656 X 1845 1656 X 2072
出料口高度  E(mm) 535 535 600 600
刀体回转直径(mm) ∅232.5 ∅313 ∅406 ∅406
主轴转速 (r/min ) 83 83 74 74
筛网孔径(mm) Z30 Z30 Z30 Z30
动刀数量 (PCS) 20+20 26+26 51+51 63+63
定刀数量 (PCS) 11+11 14+14 18+18 22+22
主机功率(KW) 18.5+18.5 30+30 45+45 55 + 55
设备重量(KG) 1850 3880 5400 5980

Model
             Item
SWTF 40150 SWTF 48150
外形尺寸 L/W/H(mm) 3040 X1800 X 2225 3675 X 1965 X 2425
粉碎室尺寸 C/D(mm) 1510 X 2020 1565 X 2460
出料口高度  E(mm) 850 850
刀体回转直径(mm) ∅406 ∅484
主轴转速 (r/min ) 80 80
筛网孔径(mm) Z40 Z40
动刀数量 (PCS) 78+78 90+90
定刀数量 (PCS) 25+25 25+25
主机功率(KW) 75+75 90+90
设备重量(KG) 9520 10520
