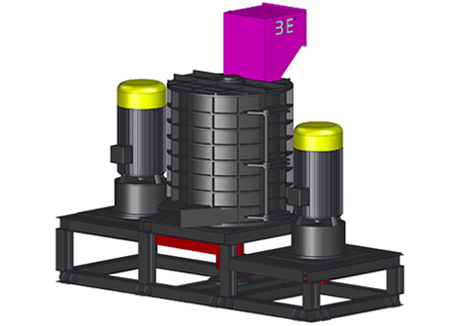

VERTICAL GRANULATOR

APPLICATIONS:


  • crisp metal
  • such as car shell
  • refrigerator shell
  • computer case
  • waste materials


EQUIPMENT INTRODUCTION

model: PCL series

Vertical Granulator is wide used for crushing the thin and crisp metal, such as car shell, refrigerator shell, computer case and other waste materials.

VIDEO

3E Product introduction

Robust welded hopper

HOPPER

European CE certification

CE CERTIFICATED

Rotor locking & external bearing

EXTERNAL BEARING

Screen is locked firmly

LOCKING DEVICE

Hydraulic control

HYDRAULIC STATION

TECHNICAL FEATURES

  • It can meet the needs of small size and large output of customers.
  • It can be used as secondary crushing equipment.

PARAMETERS

MODEL   +

DATA DOWNLOAD

DOWNLOAD

VERTICAL GRANULATOR


Items       Model

PCL100

PCL200

PCL400

Dimension L/W/H (mm)

3020×3290×4570

4040×3470×5300

4580×3200×6300

High of the Cutting Chamber E (mm)

675

835

950

Rotor Diameter (mm)

φ1130

φ1250

φ1400

Main Motor Power (kw)

75

132

320

Weight (kg)

8000

13000

18000

Capacity (kg/h)

1000-2000

3000-5000

6000-8000
